Big Bag Discharge Station
The SYVRAC Big Bag discharging station enables safe and dust-free emptying of super sacks in all types of industries. Flexible and modular, it adapts to most big bag formats and offers numerous options to ensure optimal flow rate, ergonomics, and hygiene.
- Compatible with various big bag types (1 or 4 loops)
- Loading by hoist, forklift, or stacker
- Sealed connection head for optimal containment
- Optional pneumatic massaging system and vibrating table
Description
The SYVRAC Big Bag discharging station is designed for the controlled unloading of bulk products packaged in super sacks (big bags). Each model ensures operator safety, controlled work environment, and product integrity.
Big Bag Loading
SYVRAC offers various handling solutions depending on the workshop configuration:
- Loading by electric hoist on integrated tracking rail
- Loading by forklift with guiding sleeves
- Loading by stacker or jib crane

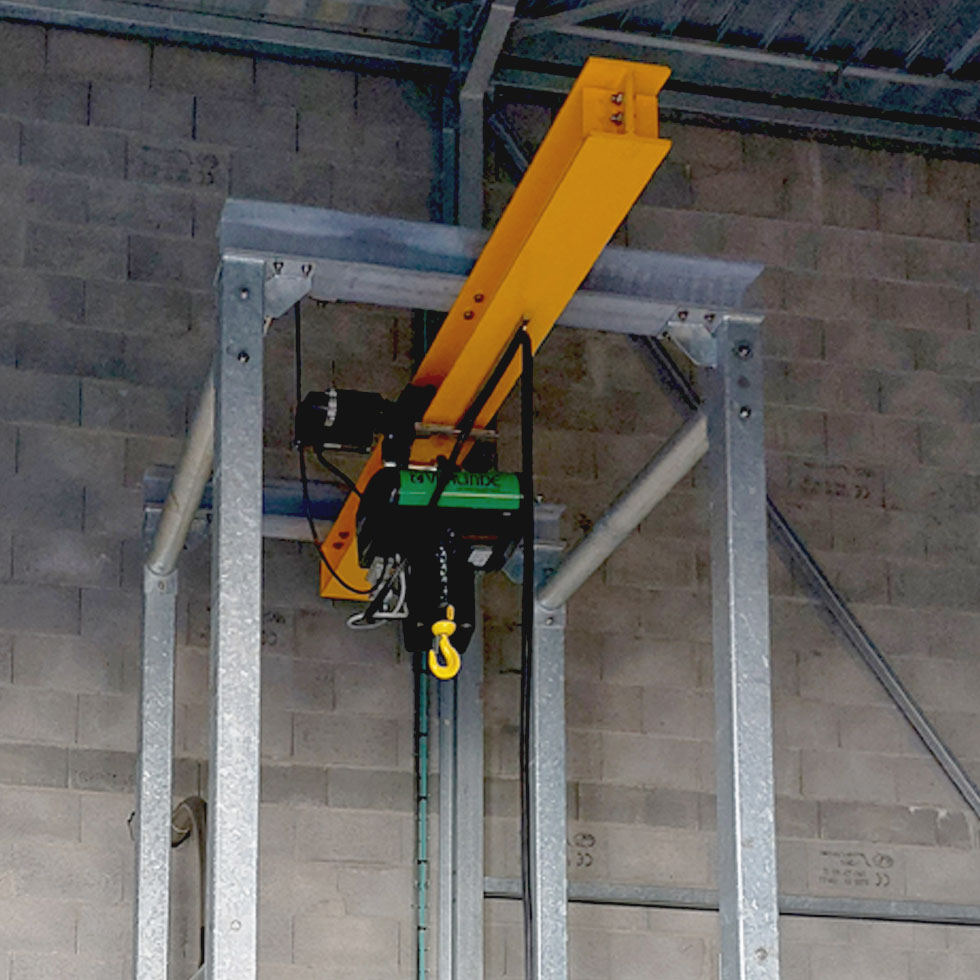

Chargement par palan électrique sur rail suiveur intégré

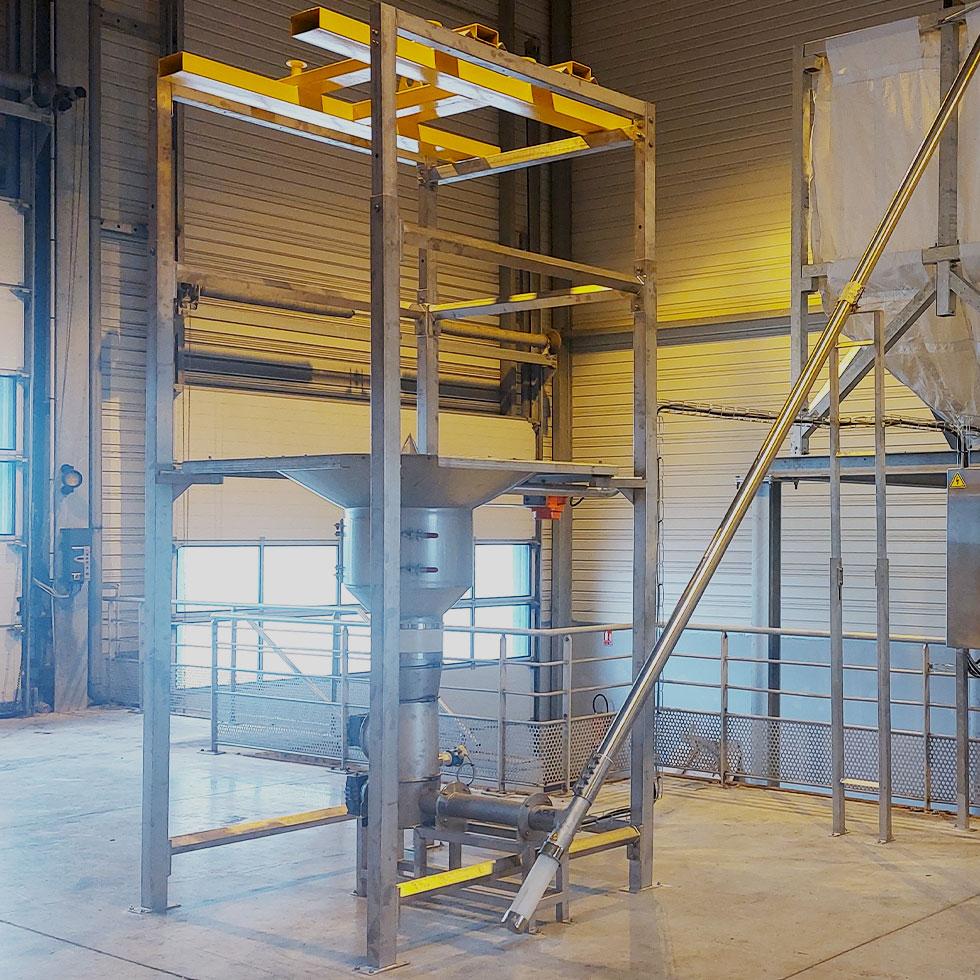

Loading by forklift with guiding sleeves

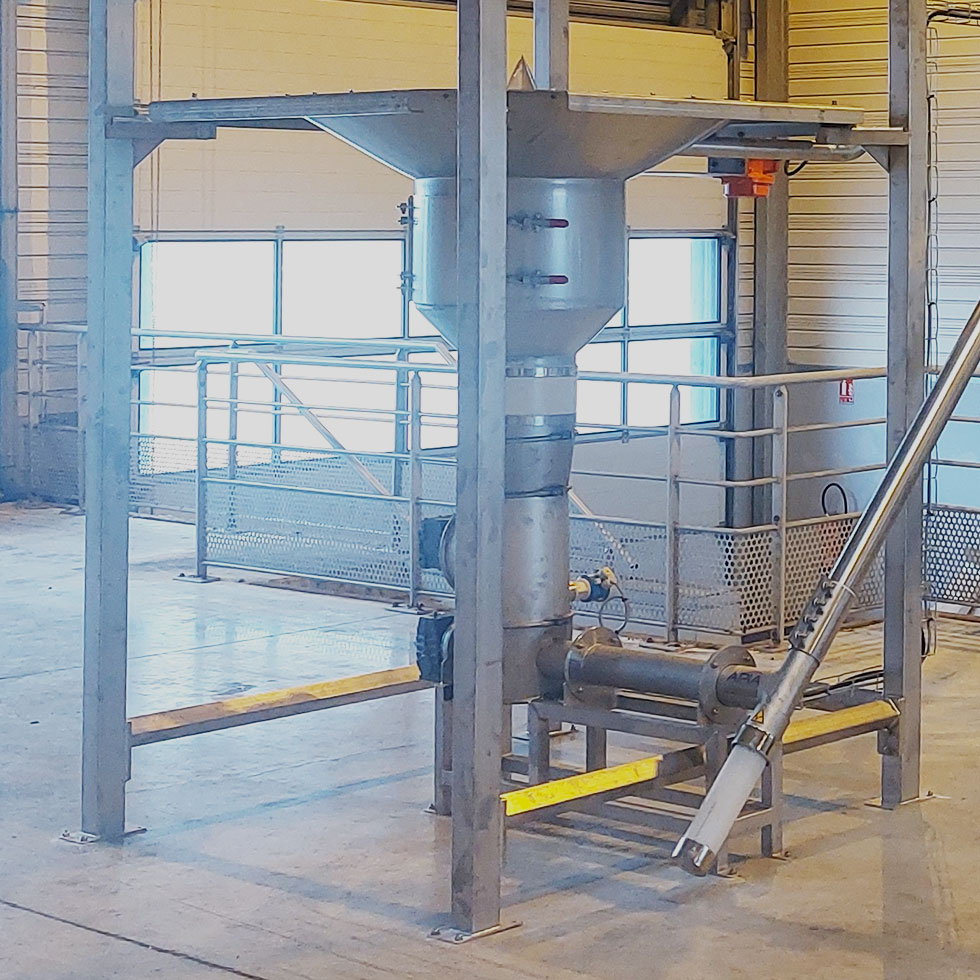

Low-frame loading structure
Flow Assistance
To promote the discharge of powders and difficult-flowing materials, several systems are available:
- Vibrating table mounted on silent blocks
- Pneumatic massaging system for big bag sides
- Bag piercing tip for non-dischargeable big bags
Ergonomics and Safety
Options such as the untying box, glove box, or containment enclosure ensure operator safety, particularly when handling toxic or highly volatile products.
Containment and Sealing
The airtight connection system securely attaches the big bag discharge spout to the connection head via an inflatable seal or telescopic tube, preventing any dust emission during opening.
Process Compatibility
The station can be combined with peripheral transfer equipment (screw conveyor, pneumatic conveying), gravimetric or volumetric dosing systems, and integrated dust extraction devices.
Options
Each of our Big Bag discharging stations is standard; the available options allow us to customize them according to your needs and requirements.

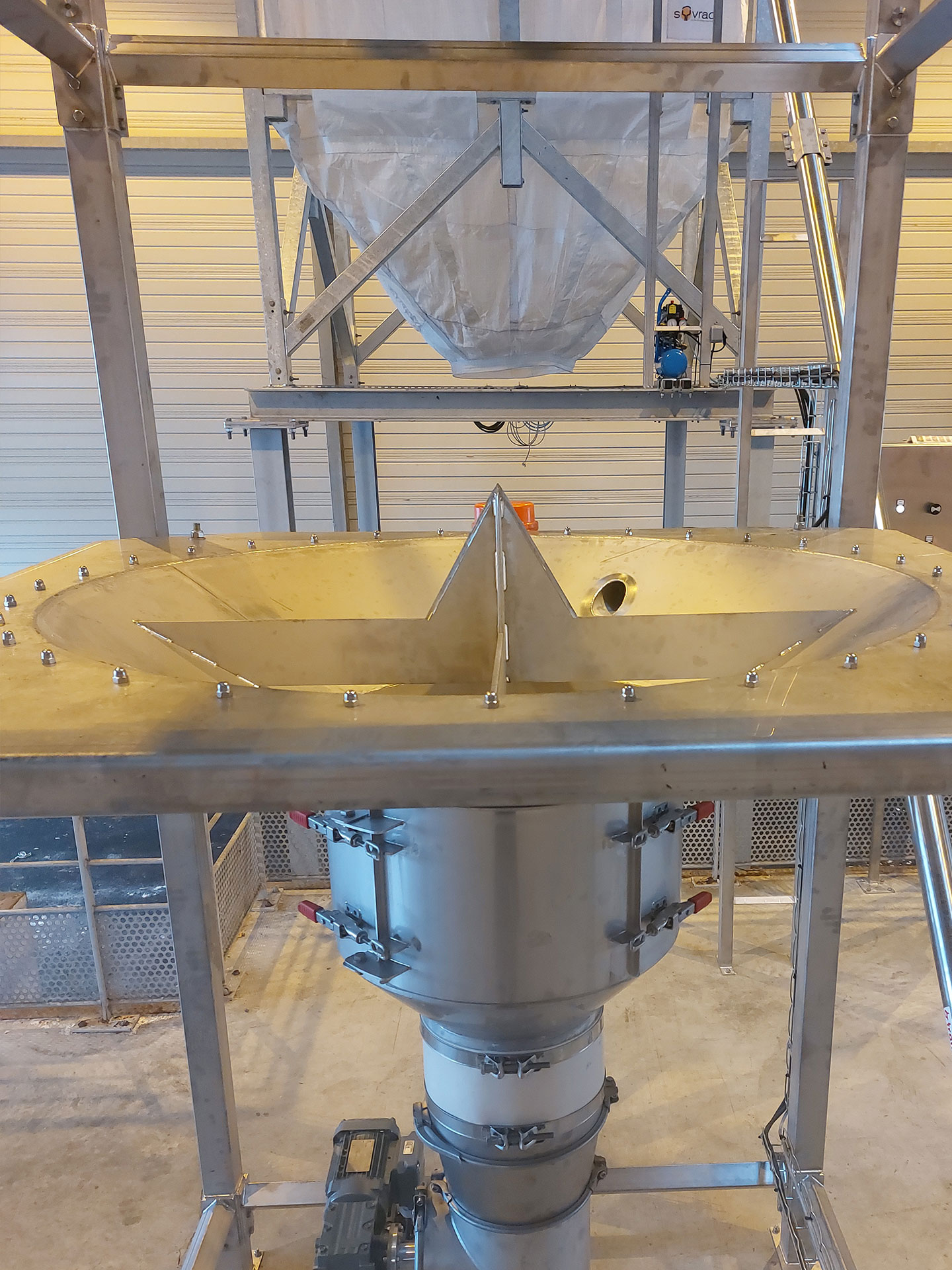

Integrated bag piercer

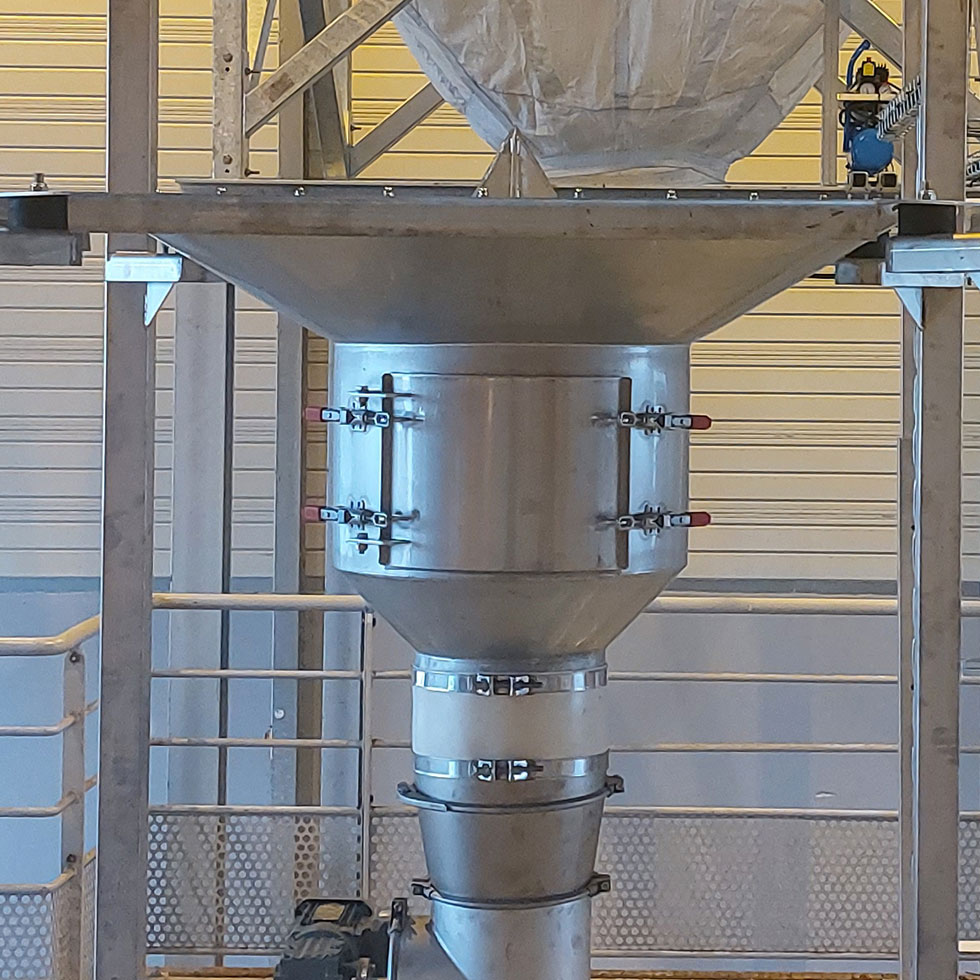

Vibrating table on silent blocks
Secured untying box
Containment glove box
Our range of Big Bag discharging stations
| SYVRAC Model | Loading type | Big Bag capacity | Available options | Max throughput |
|---|---|---|---|---|
| SVB-P | Hoist | 2 T | Massaging system / Vibrating table / Bag piercer | 30 big bags/h |
| SVB-C | Forklift | 2 T | Height adjustment / Containment skirt | 30 big bags/h |
| SVB-L | Low structure | 2 T | Ground-level ergonomics, simplified maintenance | 20 big bags/h |
| SVB-HC | High throughput | 2 T | Automation / Automatic release / Compactor | 40 big bags/h |

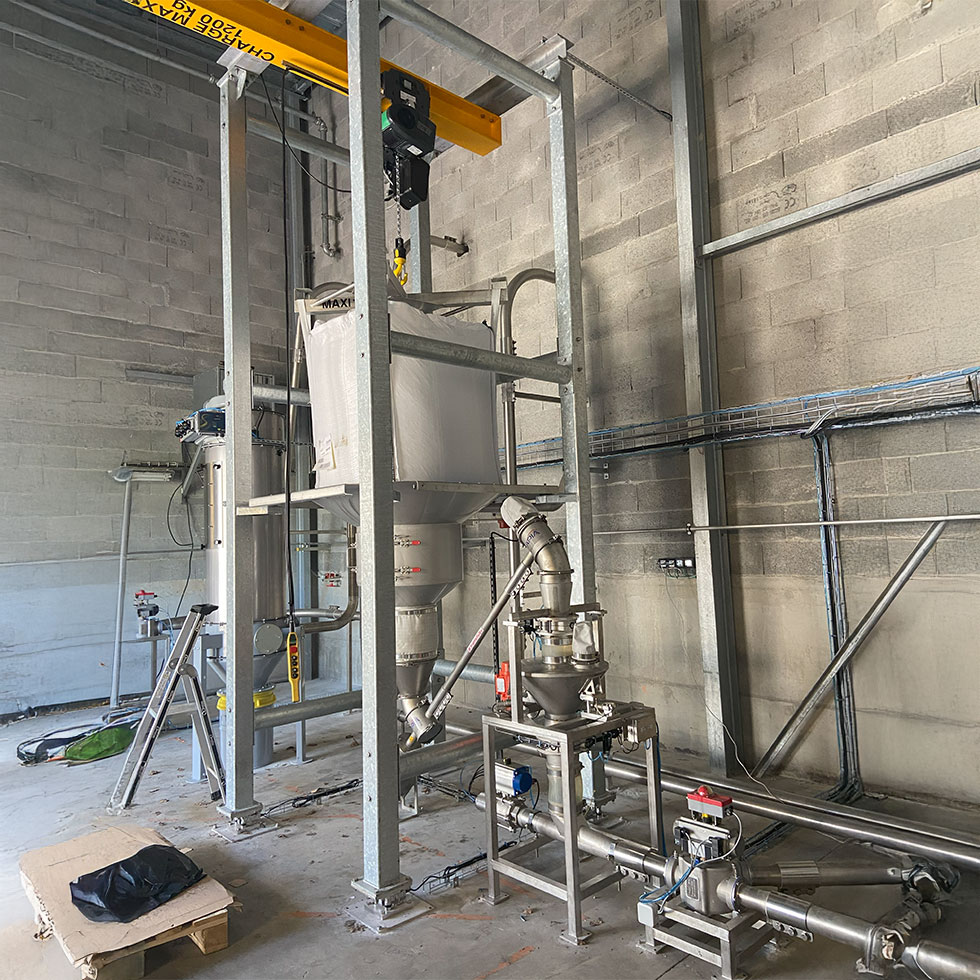

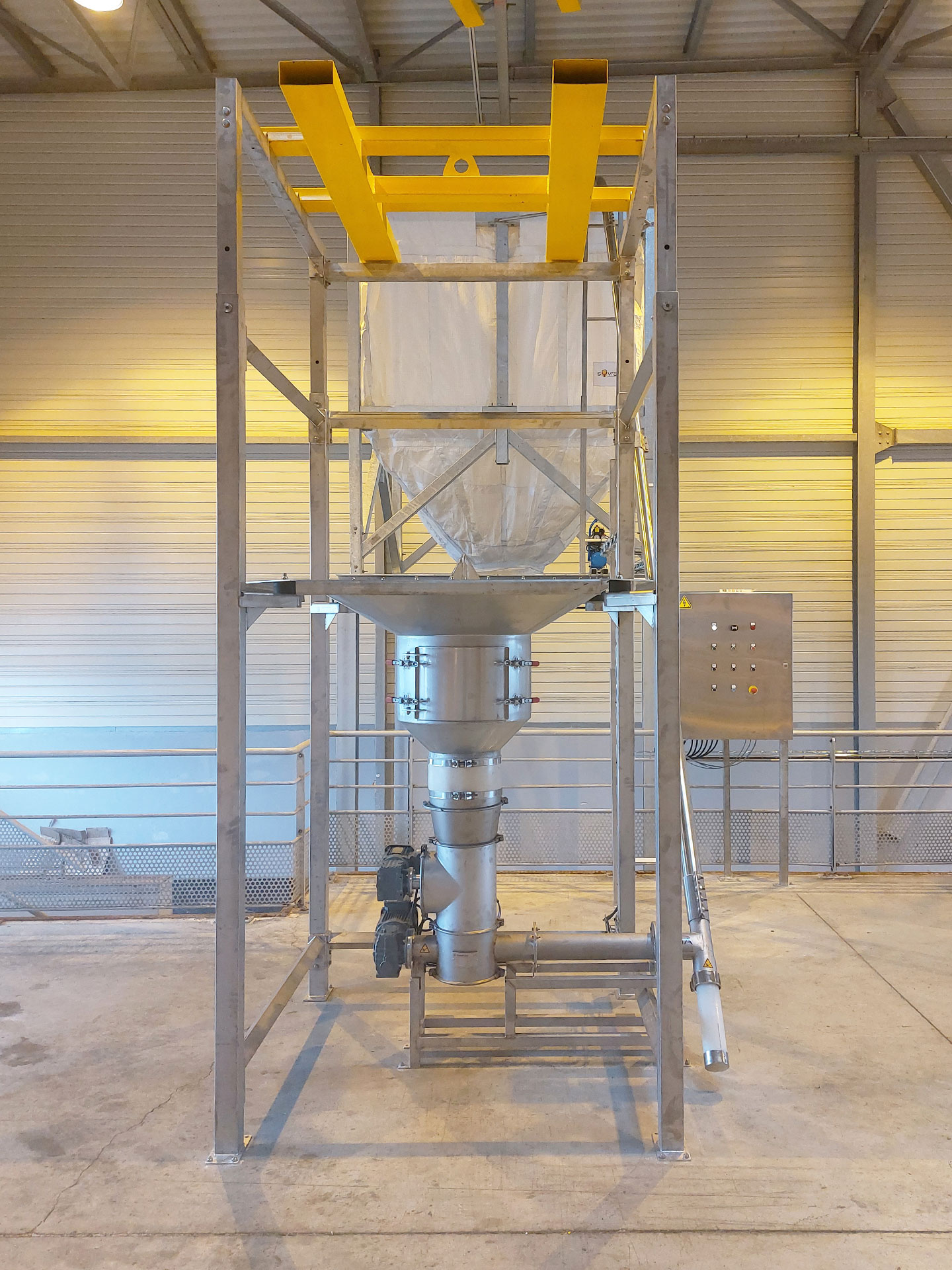

Hoist/Forklift Loading System
The adaptable handling system allows safe manipulation of all types of big bags. The tracking rail with electric hoist enables precise positioning. Guiding sleeves secure forklift loading by keeping the big bag aligned and stable, eliminating any risk of misalignment.
Sealed Connection Head
The core of the SYVRAC station lies in the connection head. Equipped with an FDA-approved inflatable seal, the big bag spout is perfectly sealed, ensuring dust-free discharge. An ergonomic access hatch allows safe untying.
Full Process Integration
Each station can be directly connected to dosing lines, pneumatic conveying systems, milling, or bagging units for a fully automated and hygienic production line.
Product Flow Assistance
The flow is optimized through various systems: a vibrating table activating the big bag bottom, pneumatic side massagers loosening the flexible walls, and, optionally, bag-piercing spikes for products that are difficult to discharge.
Operator Containment
For hazardous or highly volatile products, the station can include a sealed enclosure equipped with a glove box, exhaust hood, and ATEX pressure relief valves.
