Integrated dust extraction systems for silos and storage systems
Syvrac offers a comprehensive range of certified dust collectors for your silos, hoppers and storage systems. Fitting a high-performance filtration system to your storage units enables you to:
- Reduce maintenance: Automatic cleaning systems for extended filter life.
- Protect the environment: Zero dust emissions into the atmosphere.
- Recover the product: Filtered dust returns directly to the silo, preventing material loss.

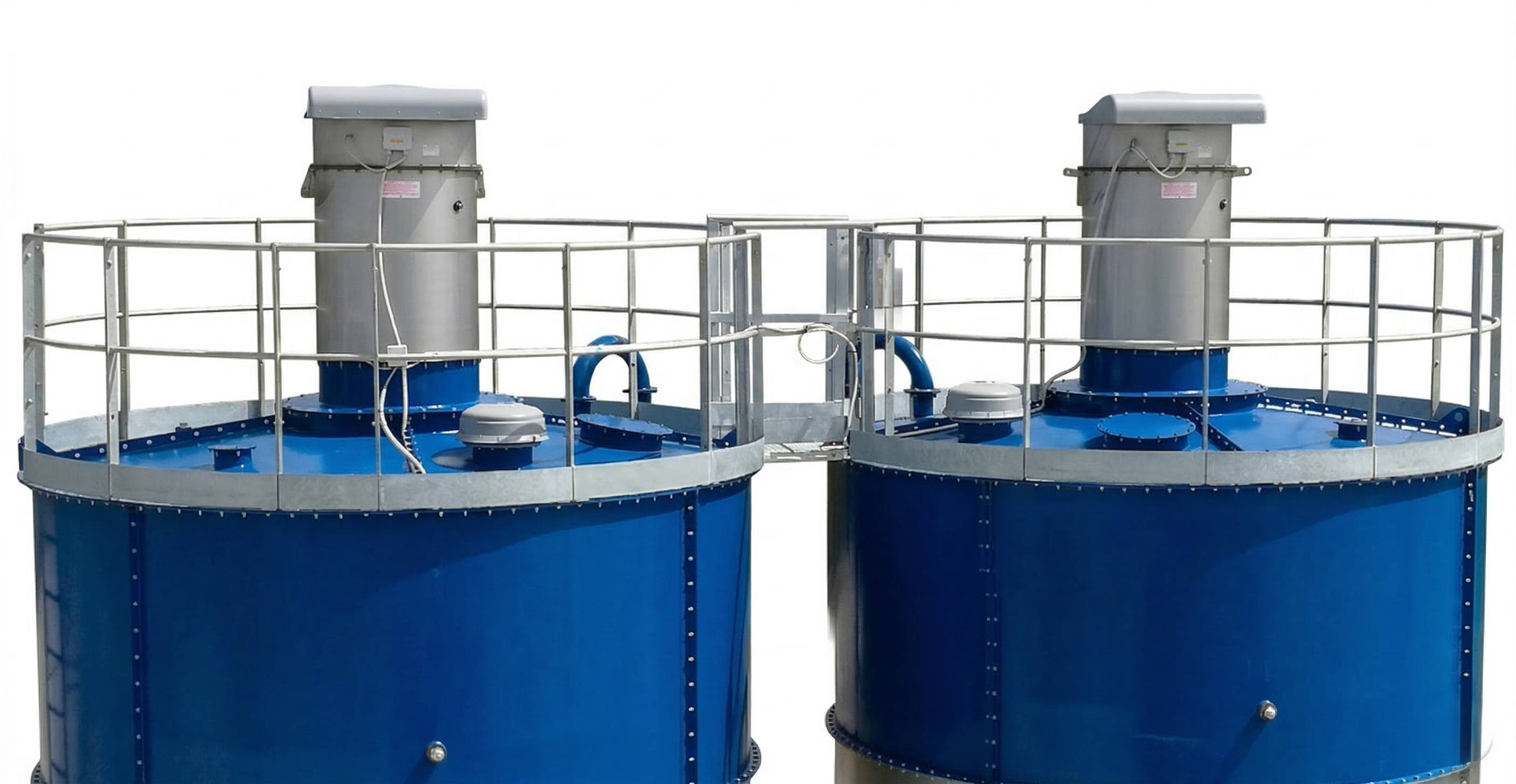

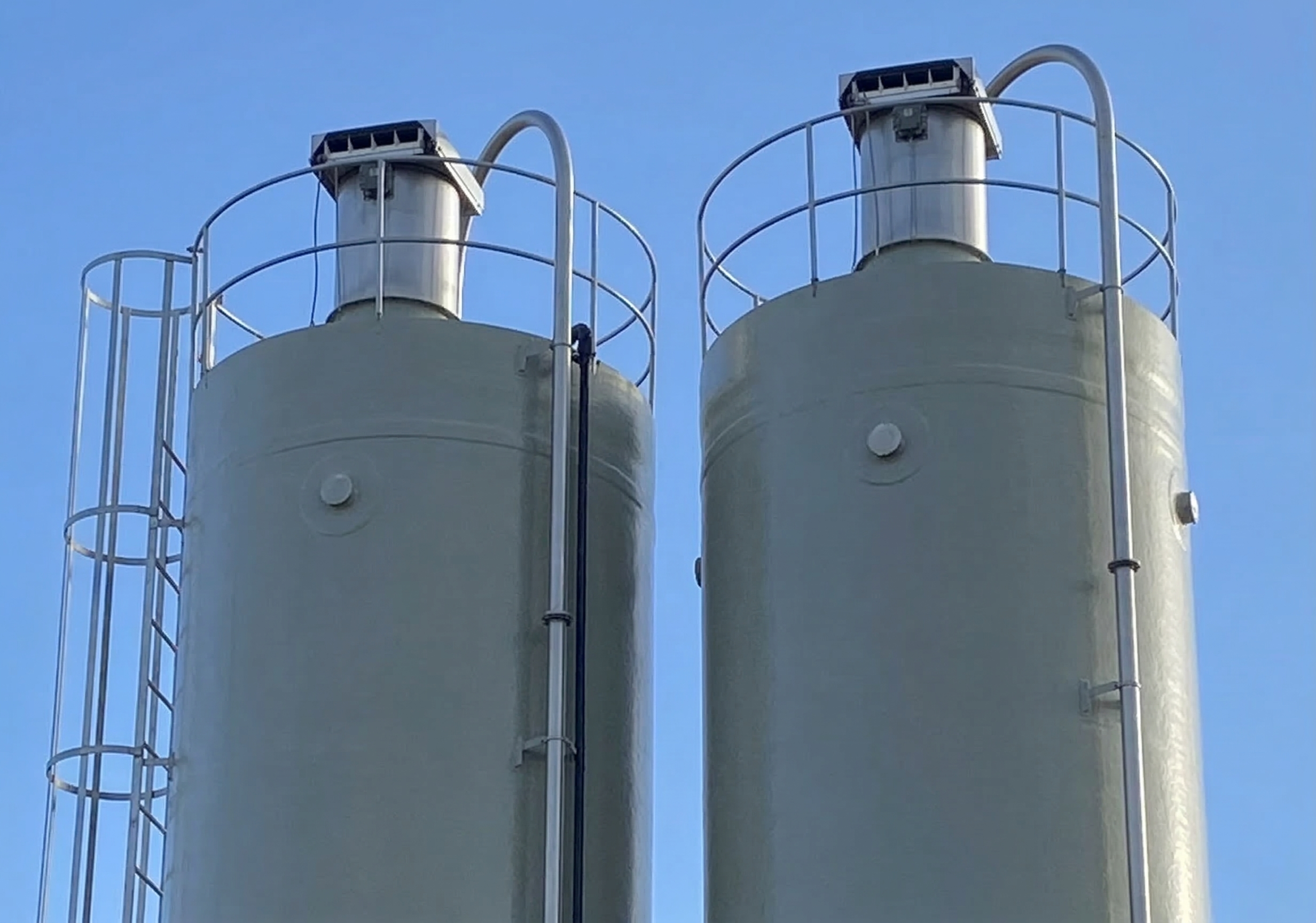

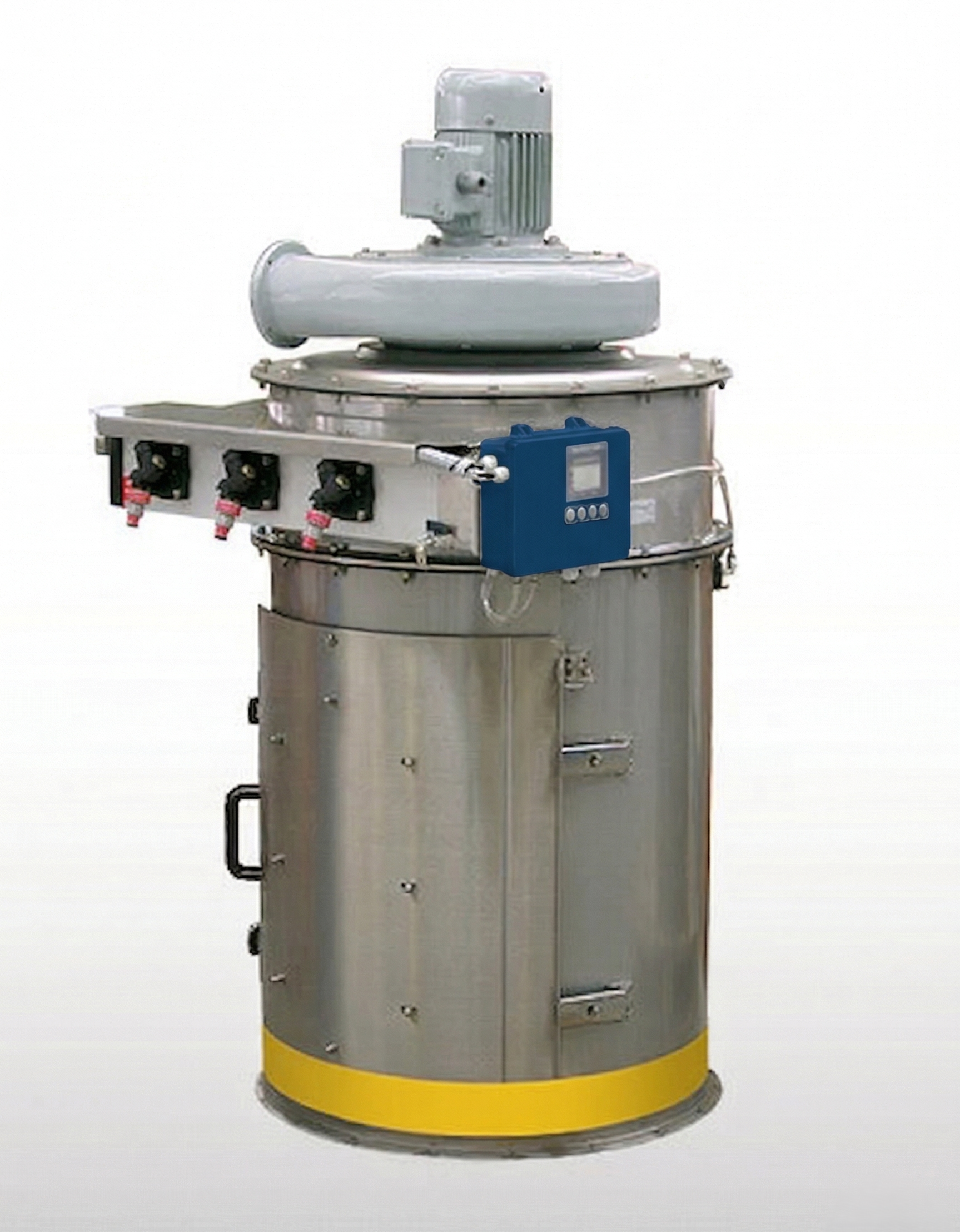

Round Flanged Dust Collectors
The benchmark for silo degassing.
Designed specifically for mounting on top of silos, these dust collectors manage air flow during filling (tanker loading or pneumatic transfer). Their cylindrical design, made from stainless steel or painted steel, ensures optimum resistance to pressure and the elements.
Key features:
- Installation: Integrated flanged body for direct, sealed mounting on the silo roof.
- Filtration: Wide range of filter media (cartridges or bags) suited to the particle size of your product (cement, flour, lime, chemicals).
- Cleaning: “Full Immersion” pneumatic cleaning system using compressed air, integrated into the hood for minimal maintenance.
- Maintenance: Access to filter elements from the side (inspection door) or from above, without the need for special tools.
- ATEX option: Available in versions certified for Zone 21 and Zone 22, ensuring safety in the presence of explosive dusts.

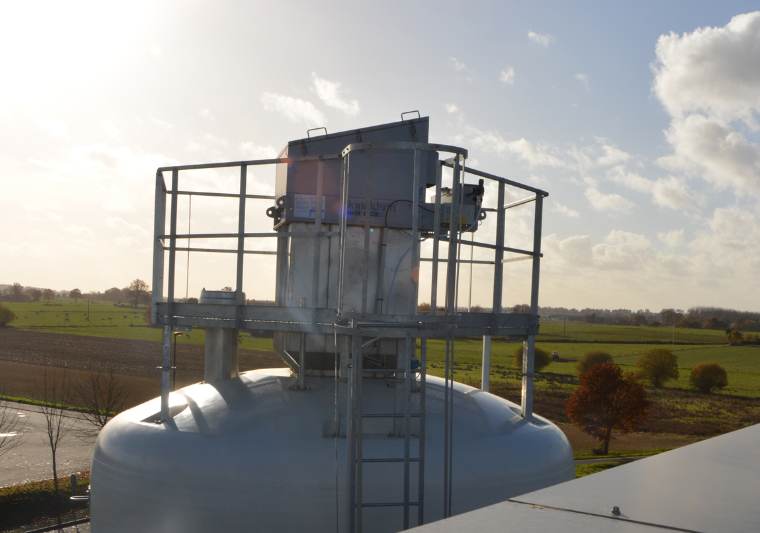

Polygonal Dust Collectors (ATEX)
The compact solution for transfer cyclofilters & resin silos.
Where space is limited or for applications on conveying systems (transfer cyclones, degassed hoppers, flexible silos or composite silos), the polygonal range offers maximum filtration surface area in a compact footprint.
Why choose the Polygonale range?
- Intelligent Design: The polygonal shape optimises airflow and reduces updraft velocity, encouraging dust to settle naturally.
- Horizontal or Vertical Installation: Complete installation flexibility to suit your space constraints.
- Strict ATEX Certification: Specially designed for potentially explosive environments. They are equipped with rupture discs or explosion panels where necessary, and antistatic components.
- Applications: Ideal for material transfer points, bag emptying stations, and buffer hoppers.
Dust Filter Comparison Table
| Your Reference | Application | Filtration Surface | Media Type | Cleaning System | Food Grade | ATEX Certified |
|---|---|---|---|---|---|---|
| FPV-24 | Silo Top (Bulk) | ~ 24 m² | Vertical cartridges | Pneumatic (Air) | No | Option |
| FPI-05 | Hopper & Transfer screw | 0.5 m² | Compact cartridge | Pneumatic (Air) | No | No |
| FPXV-16A | Silo (Hygiene & Safety) | ~ 16 m² | Hydro/Oleophobic bags | Pneumatic (Air) | YES | YES |
| FPXV-16 | Silo (Standard ATEX) | ~ 16 m² | Hydro/Oleophobic bags | Pneumatic (Air) | No | YES |
| FPV-22P | Silo (High Performance) | ~ 22 m² | Pleated cartridges | Pneumatic (Air) | No | No |
| FPV-22M | Silo (Independent) | ~ 22 m² | Nanofiber cartridges | Mechanical (Vibrating) | No | No |
