Fiberglass Silos for the Chemical Industry
The SYVRAC orthophthalic resin silo offers an economical and durable solution for outdoor bulk product storage. Made from reinforced orthophthalic polyester resin, it allows the storage of powders, granules, and plastic products under a controlled atmosphere with an excellent performance-to-cost ratio.
- Manufactured from orthophthalic polyester resin
- Outdoor storage of bulk powders and granules
- Excellent value for money for standard applications
Description
The SYVRAC Orthophthalic Rigid Silos are designed for the outdoor storage of powdery or granular products under optimal economic conditions. They represent a perfectly suitable alternative for industries seeking a reliable solution without the extreme chemical resistance required for isophthalic silos.
Structure & Materials
Manufactured from orthophthalic polyester resin reinforced with fiberglass, these silos are molded in a single block without welds, ensuring leak-tight storage and long service life. An exterior gel coat provides protection against UV rays and weather conditions.
Typical Applications
The orthophthalic silo is particularly suited for:
- Plastics industry (storage of plastic granules, PVC, PE, PET…)
- Food industry (cereals, seeds, flour, sugar…)
- Light chemical industry (mineral fillers, carbonates…)
- Construction materials (plaster, cement, lime…)
Technical Features
Orthophthalic resin provides sufficient resistance for chemically mild products at an optimized manufacturing cost. This type of silo should be favored when the chemical constraints do not require the use of isophthalic or vinyl ester resin.
Easy Installation
Thanks to their lightweight design compared to steel silos, orthophthalic silos are easy to transport and quick to install. They are directly installed on concrete pads, with or without a support structure.
Full Customization
Each silo is custom-designed according to the nature of the stored product, discharge flow rates, available height, and site constraints. Options for fluidization, dust removal, weighing, and ATEX safety systems can be integrated as needed for the process.
1 • One-piece Orthophthalic Resin Shell
The silo body is made of orthophthalic resin reinforced with fiberglass, ensuring high rigidity and perfect leak-tightness without welding. Its lightweight design makes on-site installation easier.
2 • Anti-UV Exterior Treatment
The exterior gel coat applied to the shell protects the structure against aging caused by UV rays and weather conditions, ensuring a lifespan of over 25 years in outdoor environments.
3 • Secured Filling Dome
The dome is equipped with a pneumatic filling inlet, pressure relief valves, dust filtration systems, and access hatches for inspection.
4 • High-Slope Conical Bottom
The 60° discharge cone promotes gravity flow even for low-flowability powders. Fluidization systems can be added for materials prone to clogging.
5 • Galvanized Metal Supports
The silo rests on a galvanized steel structure designed according to Eurocode standards to ensure stability and resistance to wind and seismic loads.
Options
Each of our resin silos is standard; the available options allow us to customize them according to your needs and requirements.
Fluidized conical bottom
Integrated weighing system
Dust extraction system
Level monitoring
ATEX safety valves
Our range of Orthophthalic Resin Chemical Silos
| SYVRAC Model | Usable volume (m³) | Diameter (mm) | Total height (mm) | Discharge type |
|---|---|---|---|---|
| SO-15 | 15 | 1,800 | 5,500 | Gravity discharge |
| SO-30 | 30 | 2,200 | 7,200 | Optional fluidization |
| SO-50 | 50 | 2,800 | 8,500 | 60° conical bottom |
| SO-80 | 80 | 3,400 | 11,000 | Assisted discharge |
| SO-100 | 100 | 4,000 | 12,500 | Pneumatic extraction |
| SO-150 | 150 | 4,500 | 15,000 | Integrated dosing equipment |

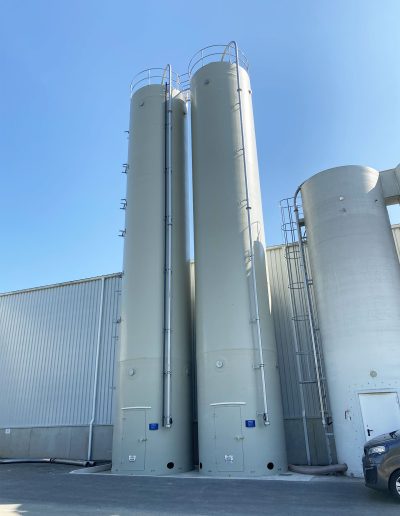

resin-silo-SYVRAC
Vibrating-bottom-and-outlet-of-resin-silo

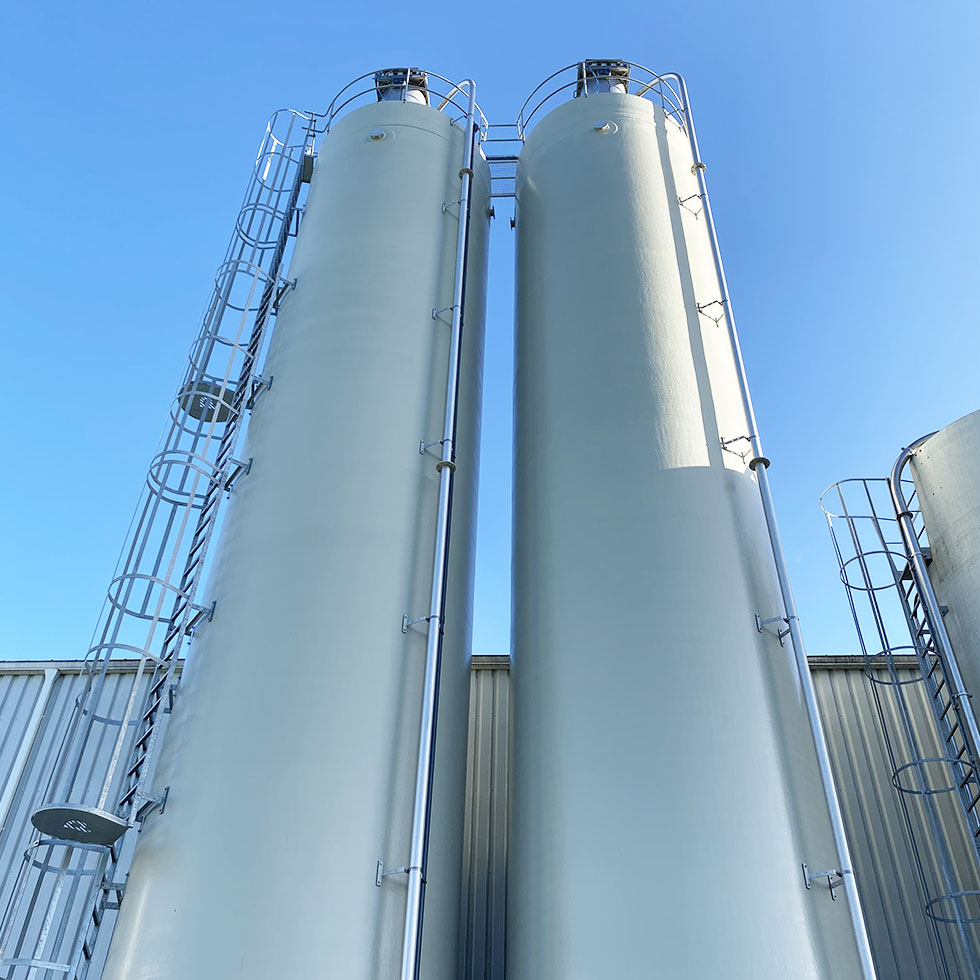

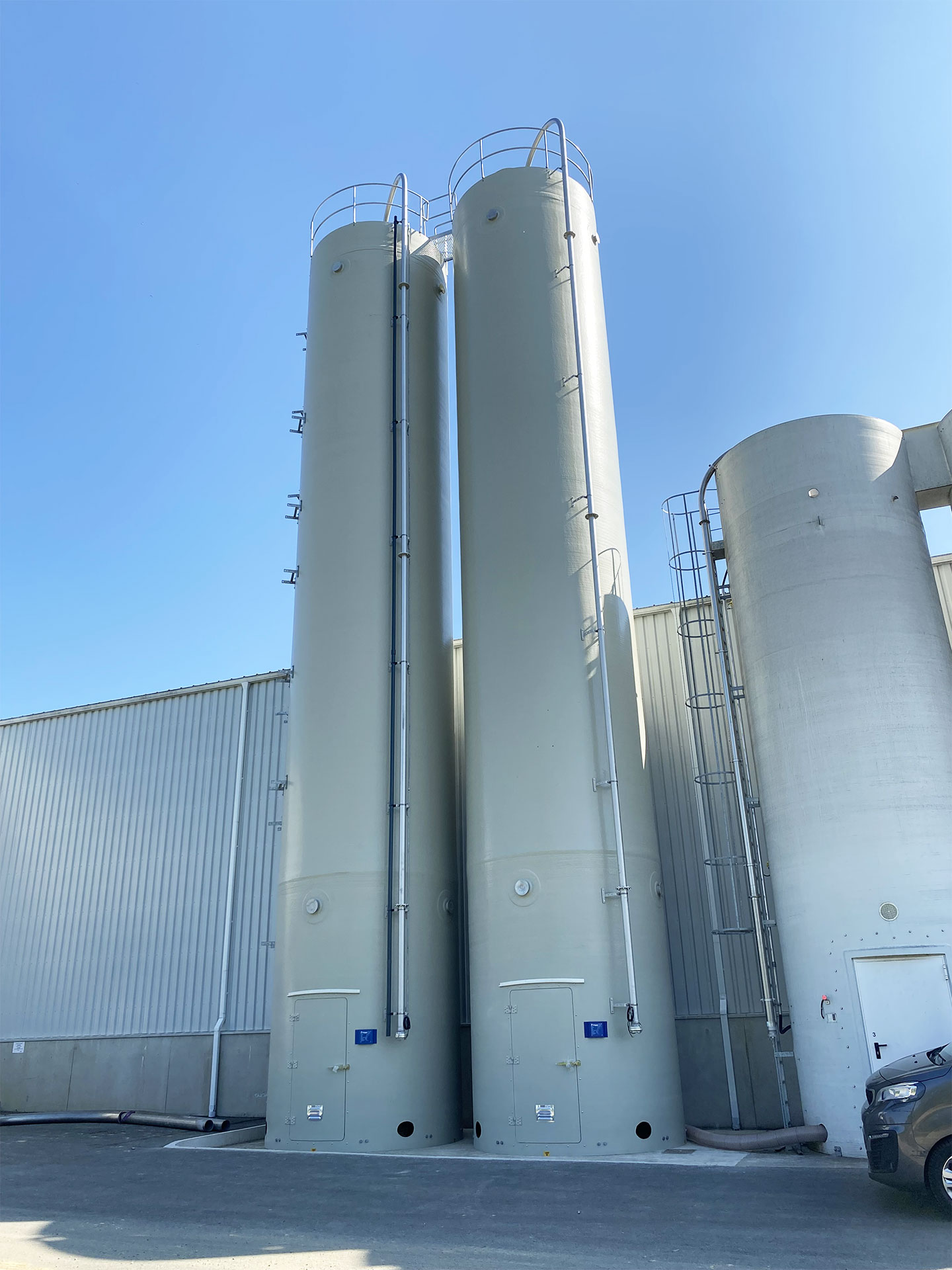

SYVRAC-orthophthalic-chemistry-resin-silo

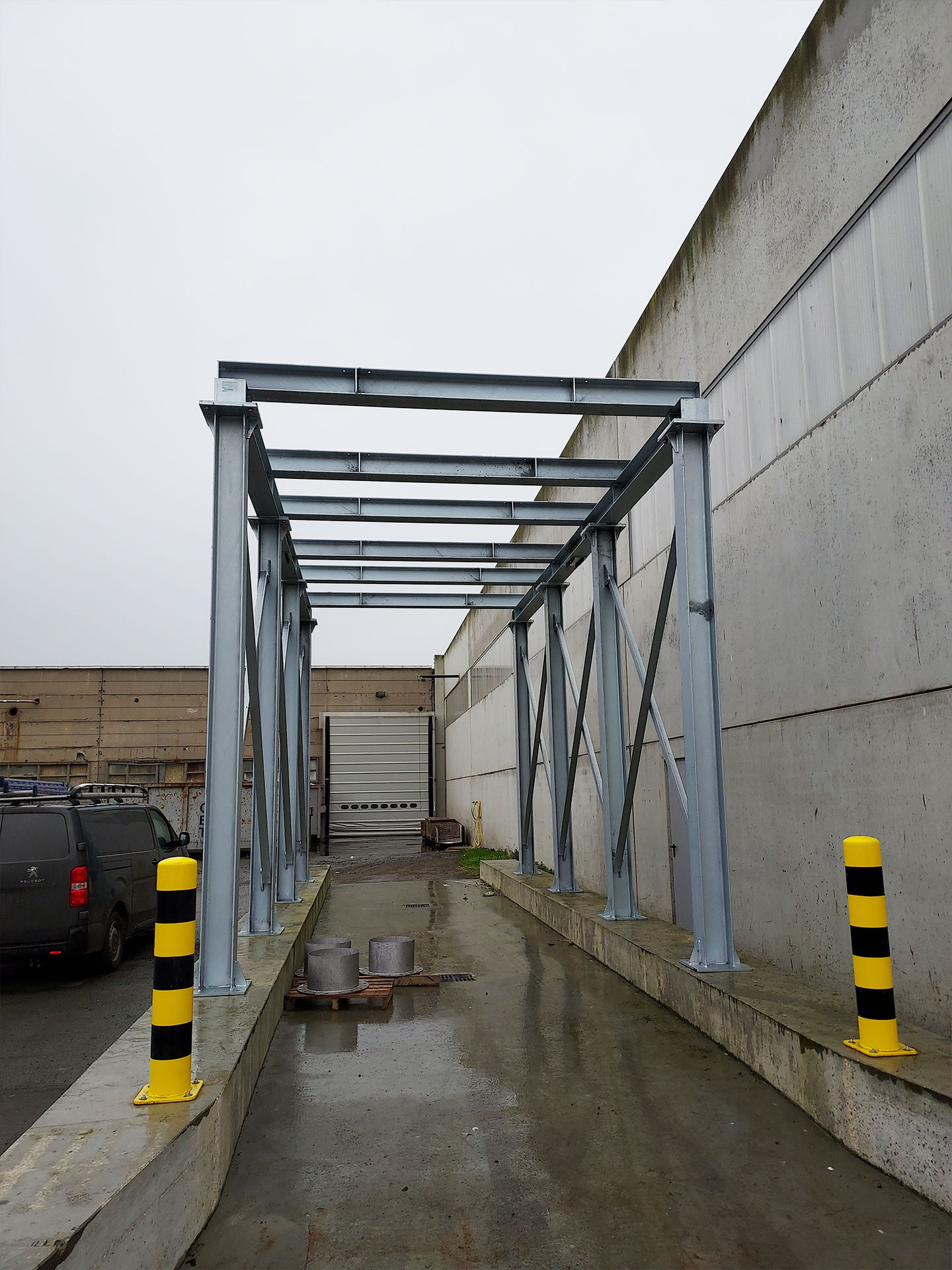

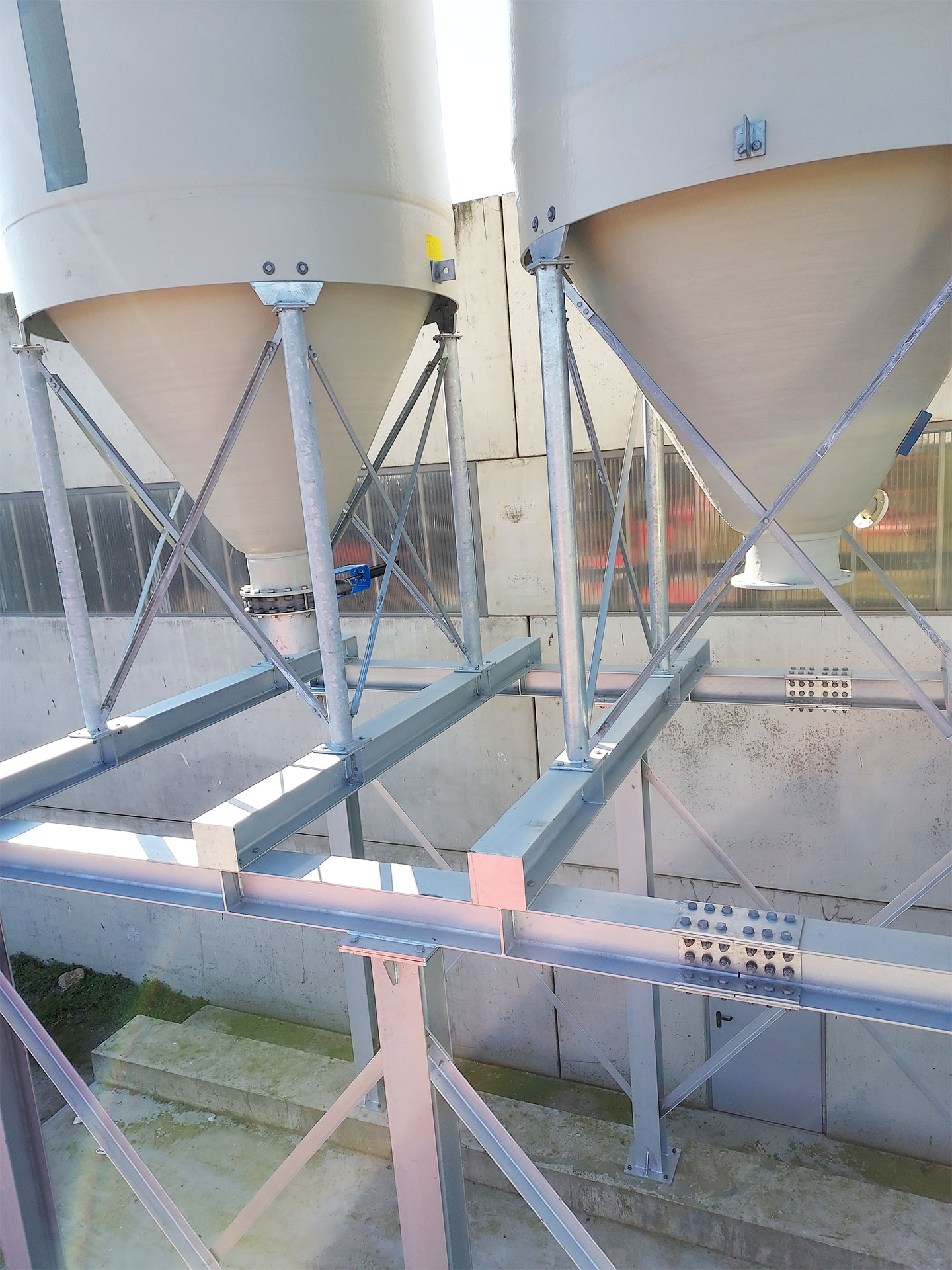

Galvanized-metal-supports-for-resin-silo

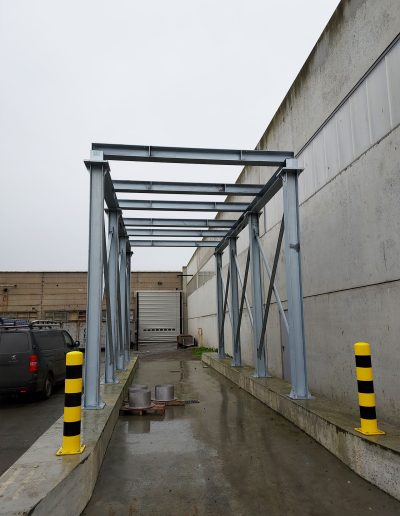

Metal-supports-for-resin-silo

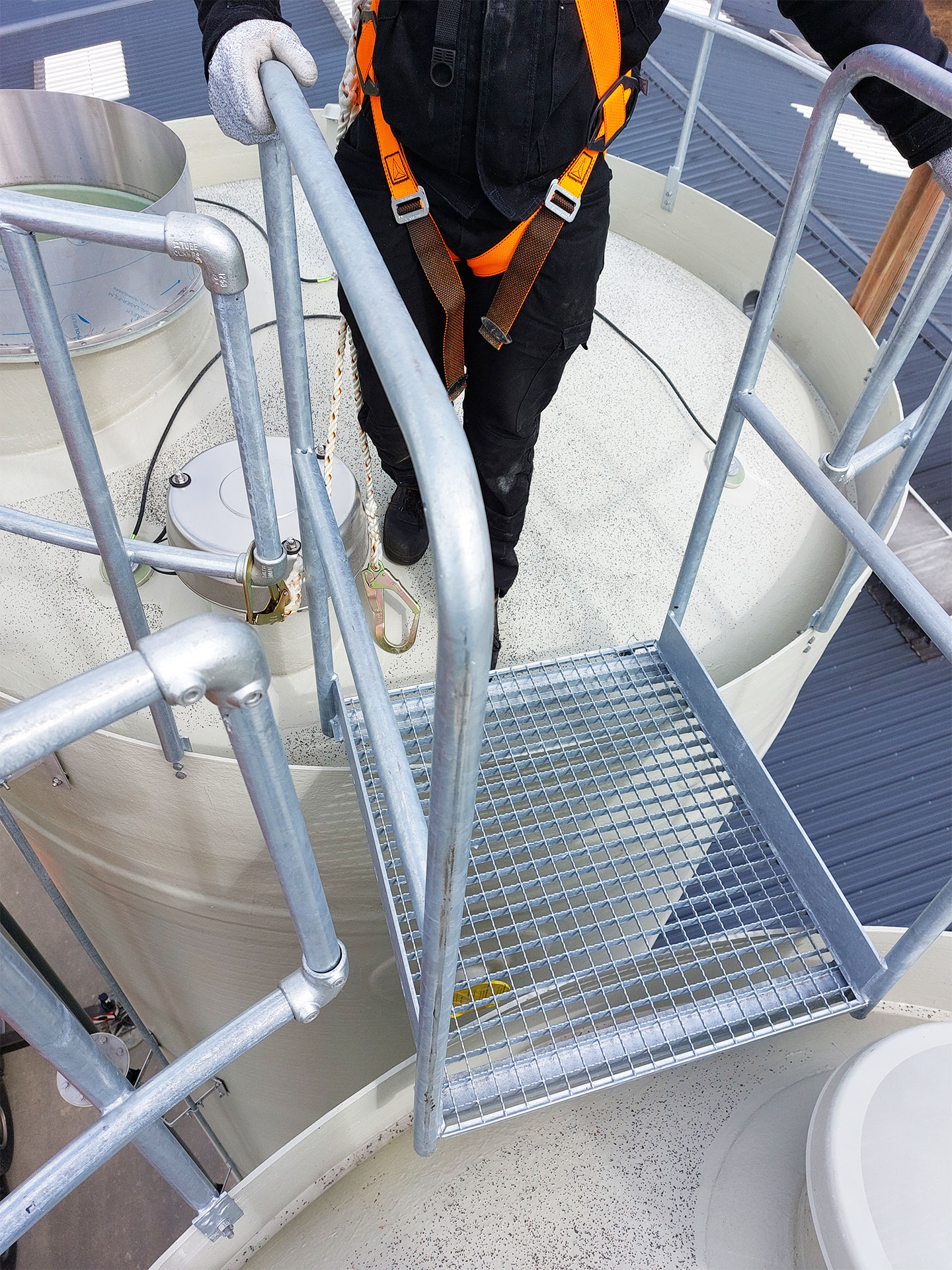

Walkway-between-silos
Implementation-of-isophthalic-silos

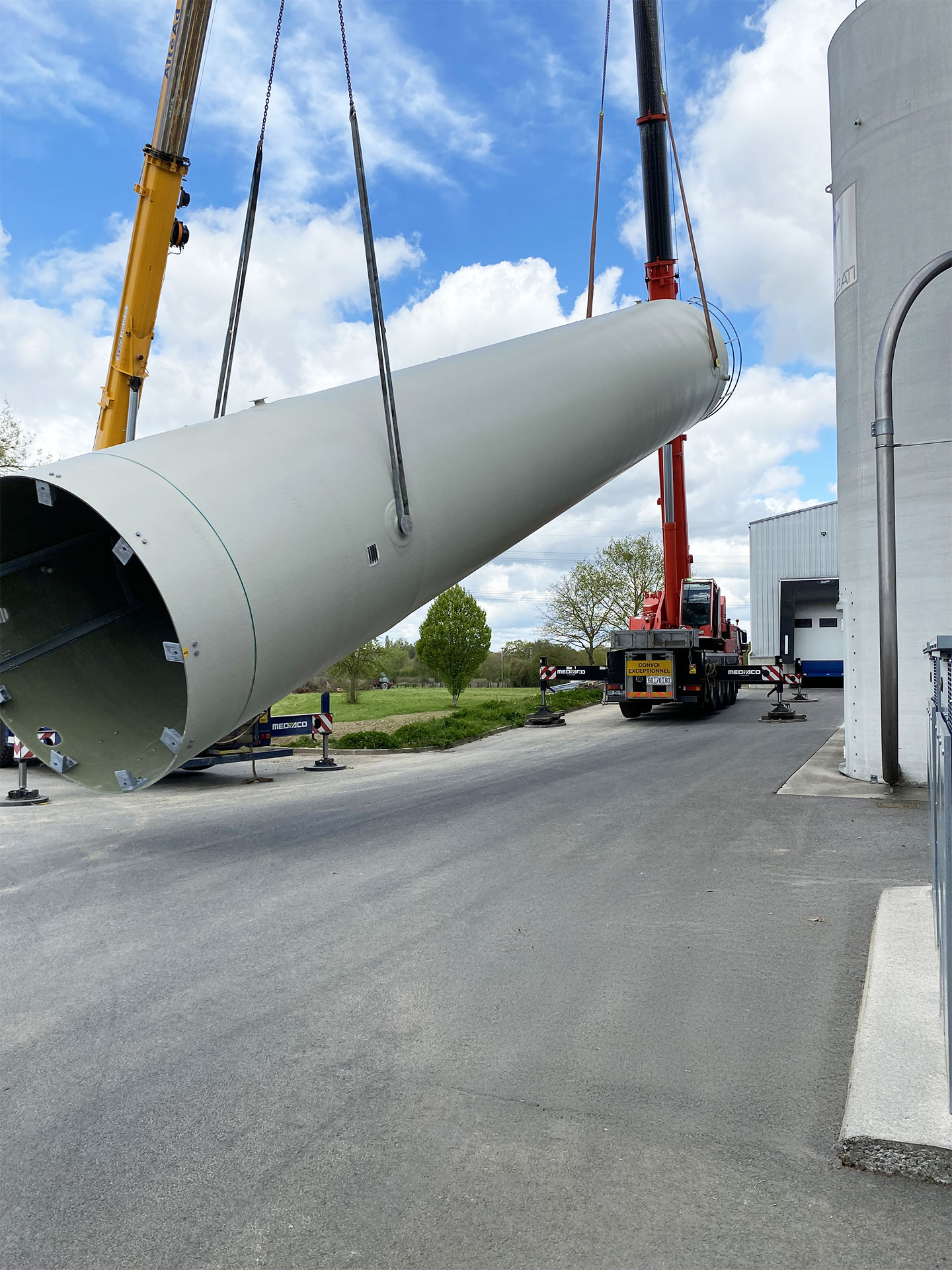

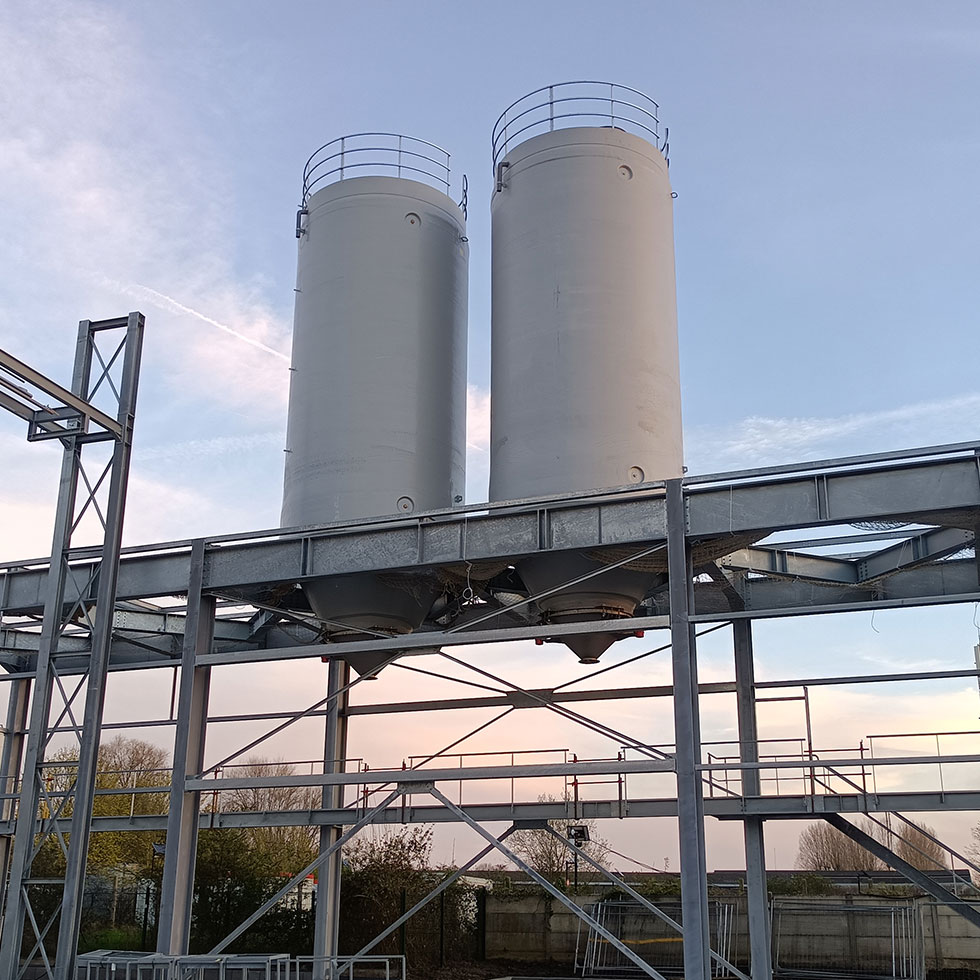

SYVRAC-resin-silo-installation

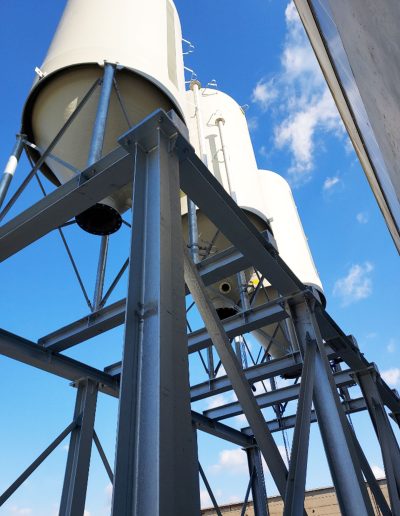

3-silos-25m3-on-gantry
Arrival-of-a-SYVRAC-resin-silo

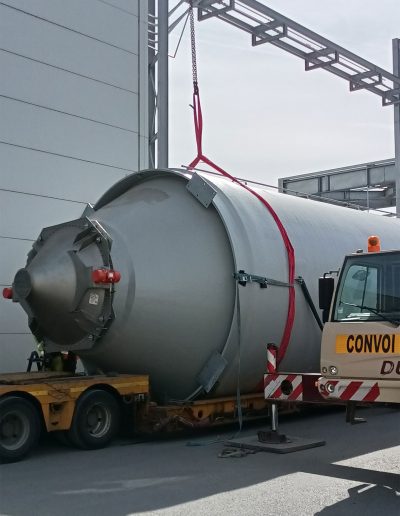

Exceptional-convoy-for-SYVRAC-resin-silo
Resin-silo-hoisting

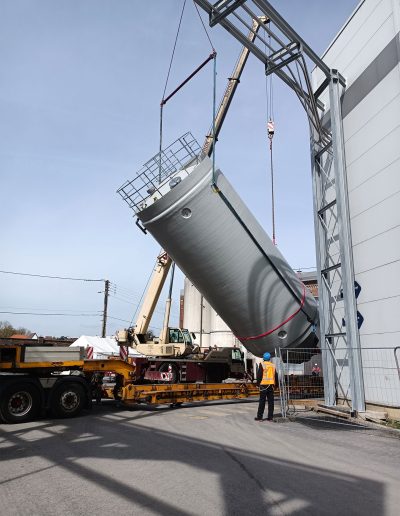

Hoisting-of-a-SYVRAC-resin-silo-for-installation-on-metal-structure
SYVRAC-Resin-Silos

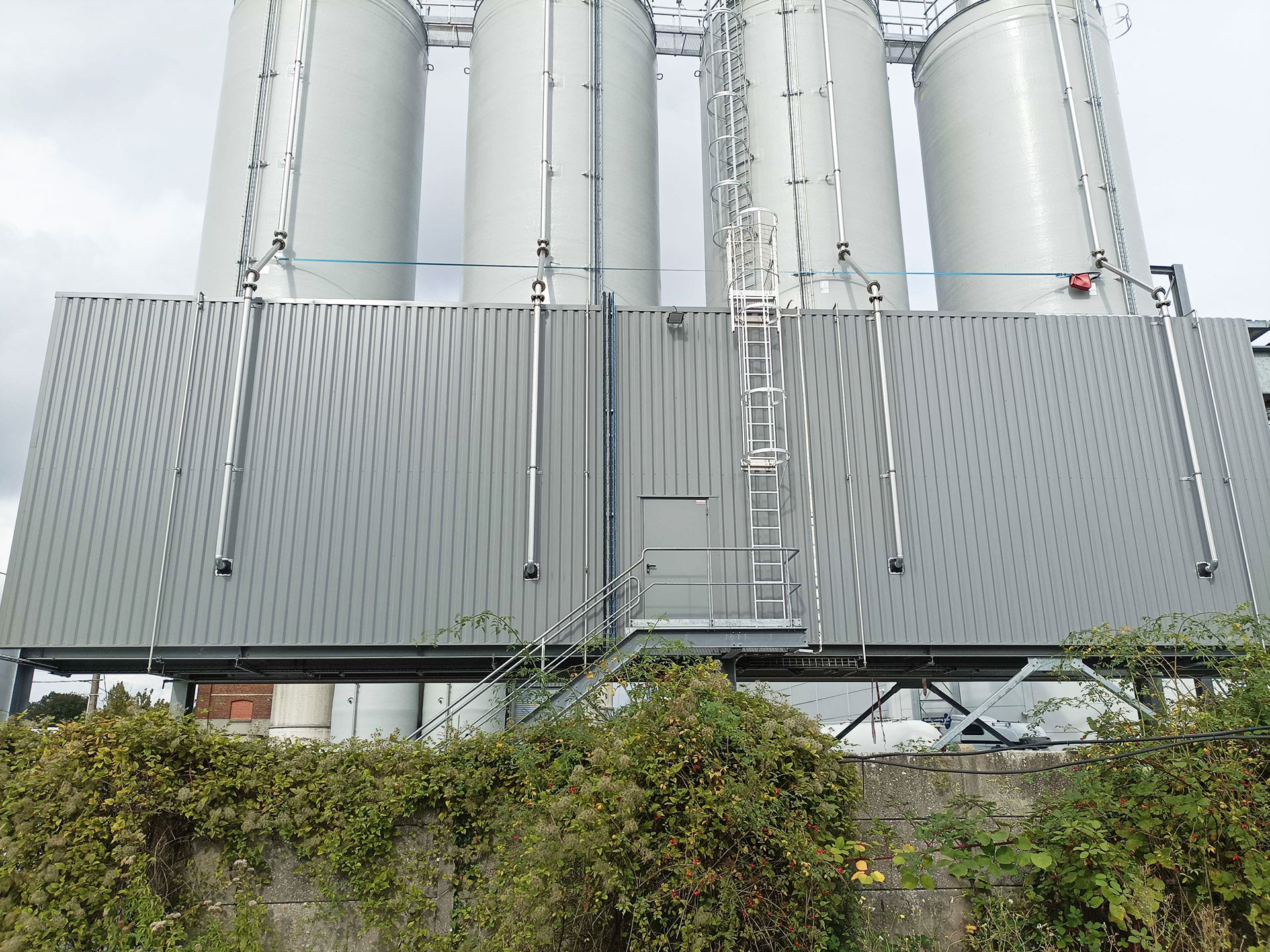

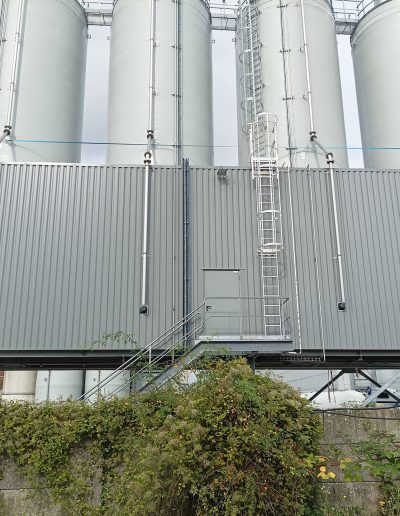

SYVRAC-resin-silos-installed-and-connected-on-metal-structure
