Aluminium silo
Aluminum silos offer an economical and reliable solution for storing bulk products and industrial powders. As an alternative to stainless steel silos, they ensure compliance with food-grade standards while offering excellent value for money. Designed for both outdoor and indoor installation, they are resistant to weather and corrosion. Their lightweight and modular design allow for quick installation and easy transport, reducing overall setup costs.
- Cost-effective alternative to stainless steel
- Compliant with food-grade standards
- High recyclability and reduced weight
Description
SYVRAC aluminum silos represent a cost-effective and efficient solution for storing powders and granules, offering a lower cost than stainless steel silos while meeting food-grade requirements. Although less dense than stainless steel, aluminum provides good resistance to weather and industrial environments, making it suitable for outdoor storage.
Its main advantages lie in its low cost and light weight, which reduce the load on support structures and simplify installation logistics. Being inert, aluminum prevents chemical contamination and is perfectly suited for the food, chemical, and plastics industries.
Thanks to its naturally oxidized and protective surface, it requires no additional anti-corrosion treatment and offers long-lasting durability, though slightly lower than stainless steel in highly aggressive environments.
SYVRAC aluminum silos are available in various configurations: on legs, with skirt, or with specific support structures. They can be equipped with numerous accessories and options to meet industrial requirements, including weighing systems, ATEX anti-explosion devices, and integrated dust extraction solutions.
Main features
- Storage volume from 2 to 150 m³
- Food-grade aluminum construction
- Fully customizable design
- 100% recyclable
Options
Each of our silos is standard; the available options allow us to customize them according to your needs and requirements.
This range is also available in an ATEX version and can be designed with a specific internal finish for food or chemical applications.

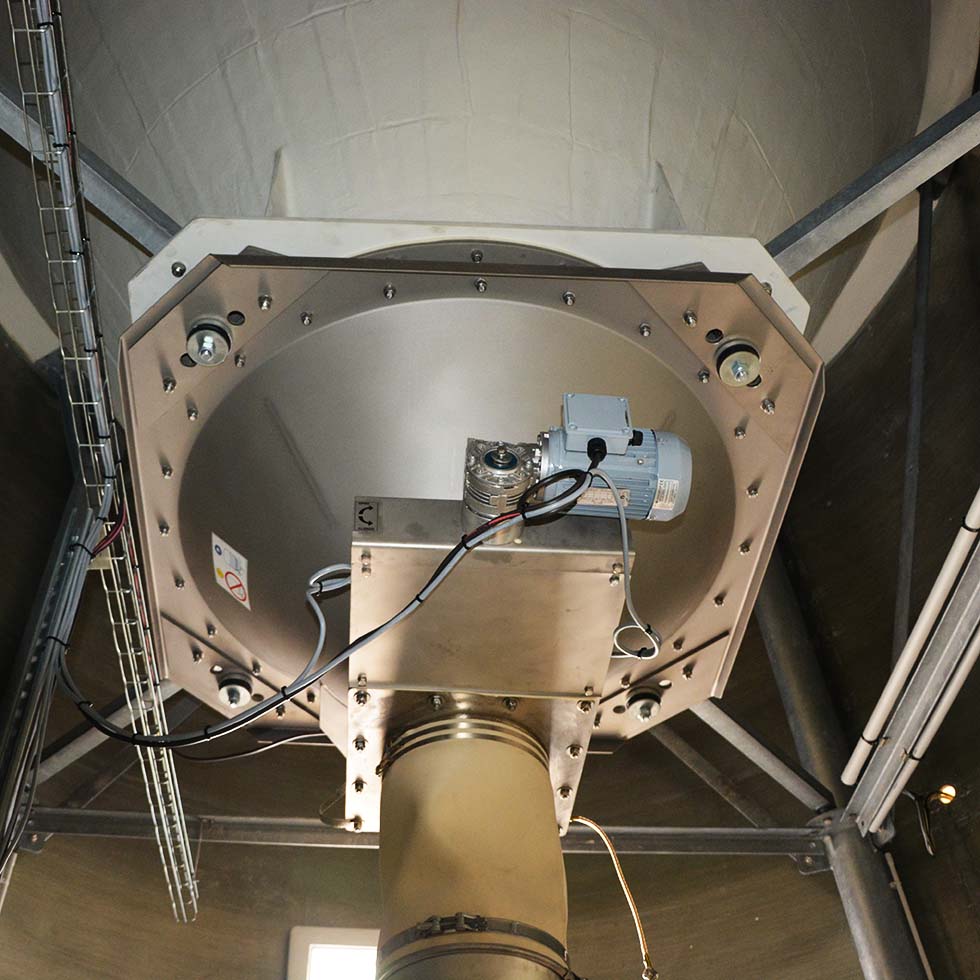

Discharge via vibrating bottom

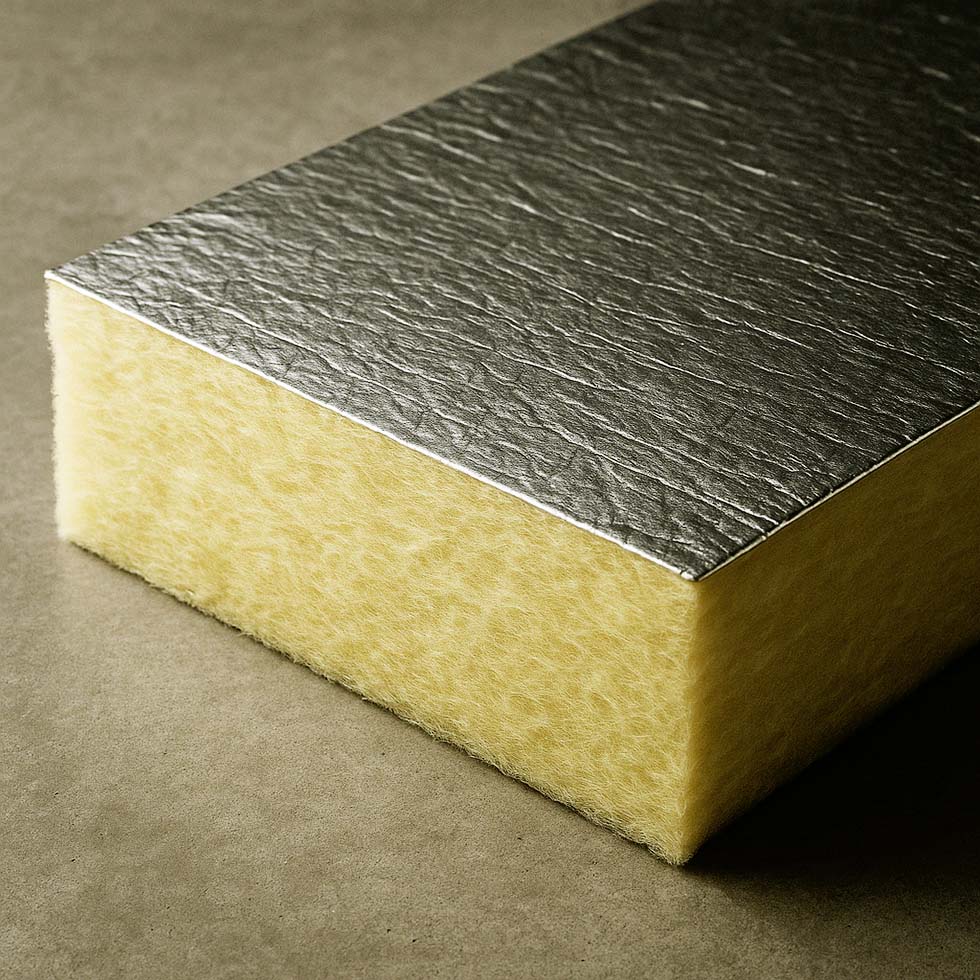

Thermal insulation

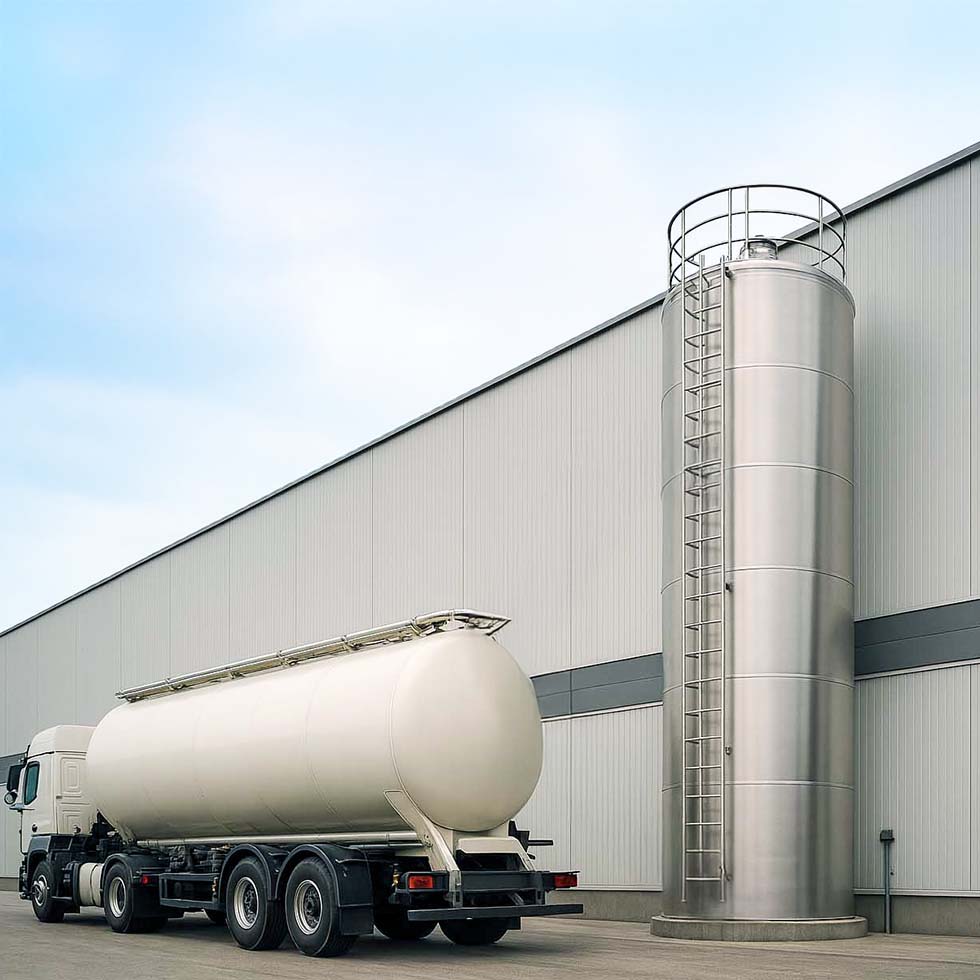

Truck unloading hose
Heater inside silo skirt
Silo skirt lighting
Jib crane with hoist
Lightning rod
Copper grounding 50 mm² ensuring a resistivity of 10 ohms.
Internal conductivity bar
Our range of aluminum silos
| Silo Reference | Capacity (m³) | Capacity (T) | Diameter (mm) | Internal height (mm) | Total height (mm) | Inlet flange (mm) | Outlet flange (mm) |
|---|---|---|---|---|---|---|---|
| SILALU-10 | 10 | 8.0 | 2200 | 4000 | 5500 | 200 | 150 |
| SILALU-25 | 25 | 20 | 2800 | 6000 | 7500 | 250 | 200 |
| SILALU-50 | 50 | 40 | 3600 | 8000 | 9500 | 300 | 250 |
| SILALU-75 | 75 | 60 | 4000 | 10000 | 11500 | 300 | 250 |
| SILALU-100 | 100 | 80 | 4400 | 12000 | 13500 | 350 | 300 |
| SILALU-150 | 150 | 120 | 5000 | 15000 | 16500 | 400 | 350 |

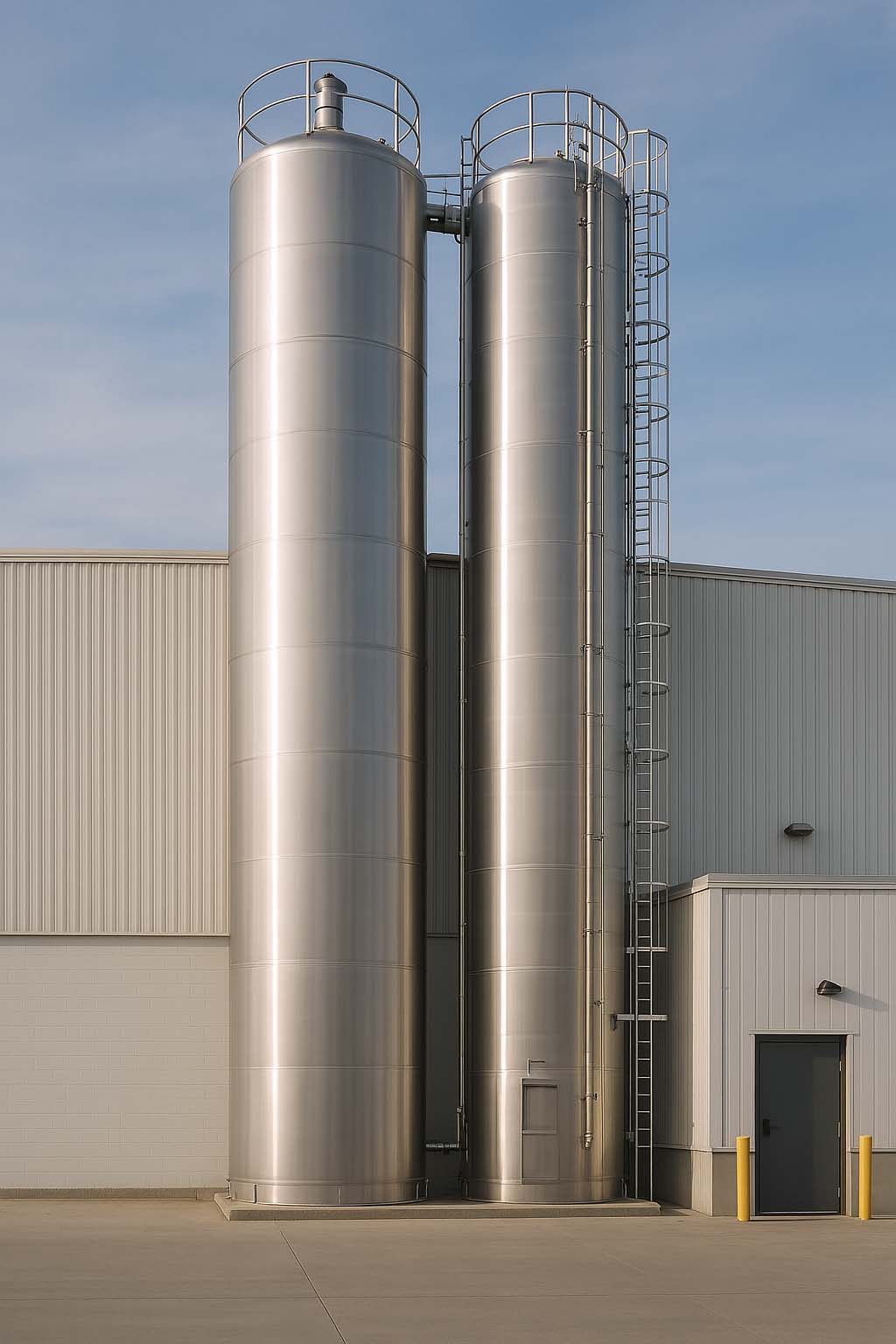

Hygiene and Food Contact
SYVRAC aluminum silos are suitable for storing food products thanks to their inert material, naturally protected by an oxide layer. Unlike other solutions, aluminum requires no additional coatings and ensures no migration of substances into the stored materials. Easy to clean due to their smooth and durable surface, they comply with food standards (CE 1935/2004, FDA). The absence of corrosion and low residue adhesion provide a hygienic and long-lasting storage solution for sensitive powders and granules.
Stainless Steel vs. Aluminum Comparison
Aluminum offers a more economical alternative to stainless steel while maintaining properties suited for industrial storage. Lighter and easier to handle, it reduces transport and installation costs. Although stainless steel is preferred for highly aggressive or corrosive environments, aluminum meets the needs of most food and chemical industries. Its excellent price-to-performance ratio allows for high-performance silos at a significantly lower cost than stainless steel models.
Options and Customization
SYVRAC aluminum silos are fully customizable to meet the specific needs of each industry. Several options are available:
- Discharge valves: butterfly, slide gate, or rotary valve.
- Weighing and level sensors: accurate stock monitoring.
- ATEX safety: grounding, explosion relief panels, overpressure sensors.
- Thermal insulation: protection against temperature variations.
- Safe access: platforms, ladders, and walkways for maintenance.
Our engineers design tailor-made solutions, ensuring optimal integration of aluminum silos into your process.
Silo System Supervision
SYVRAC offers advanced supervision solutions for real-time control of storage levels, environmental conditions, and equipment operation. Connected systems make it possible to anticipate restocking needs and ensure complete traceability of stored batches. With intuitive interfaces, industrial operators can remotely monitor their inventory and optimize raw material management, ensuring smooth and uninterrupted production.

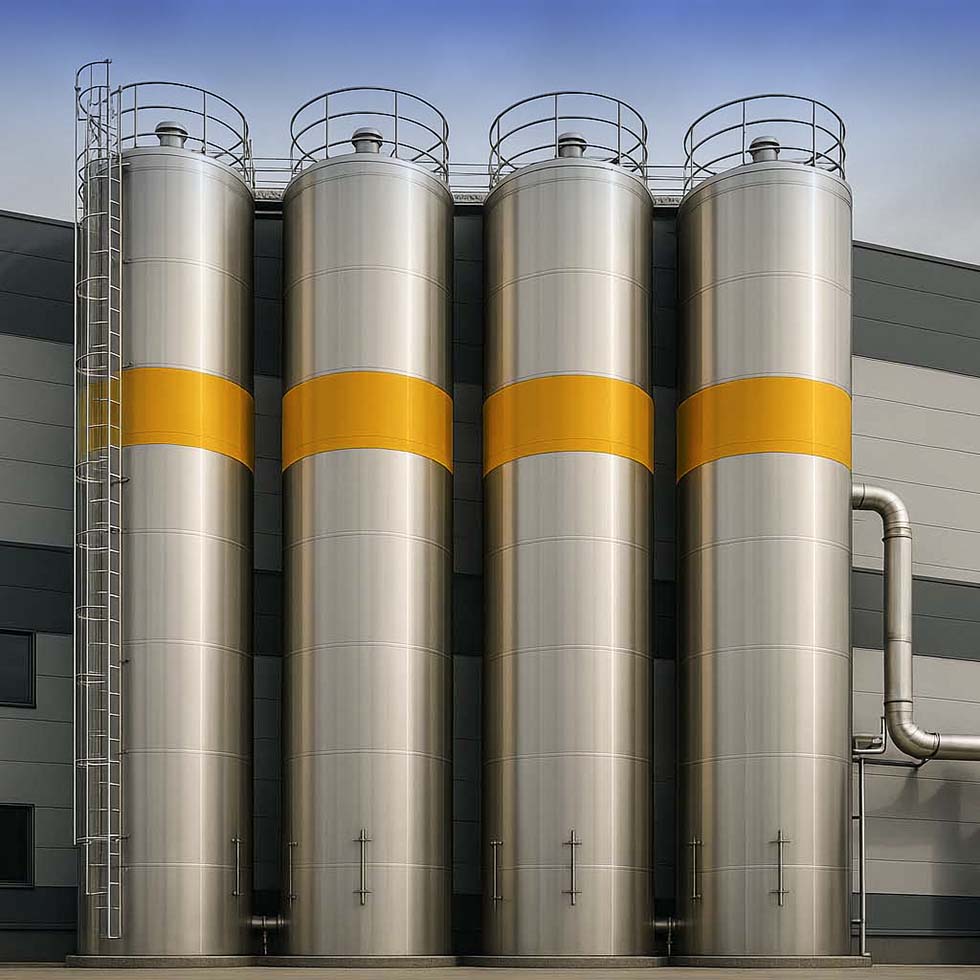

Safety and ATEX Compliance
The storage of powders with low Minimum Ignition Energy (MIE) in aluminum silos must comply with ATEX standards to prevent explosion risks. Our silos can be equipped with grounding devices and anti-explosion systems (relief panels, backflow preventers). Aluminum, being a good conductor, effectively dissipates electrostatic charges, thereby reducing the risk of dust ignition.
Extraction and Fluidization
Aluminum allows for custom design of discharge cones and unloading systems to ensure smooth product flow. Depending on the characteristics of the powders, we integrate vibrating bottoms, air cannons, or fluidizers to prevent clogging and ensure uniform discharge. Our extraction solutions are suitable for the most complex materials, whether powdery, granular, or low-flowability products.
Recyclability and Environmental Impact
Unlike resin or painted steel silos, SYVRAC aluminum silos offer a 100% recyclable and eco-friendly solution. Aluminum can be remelted and reused without any loss of quality, thereby reducing the environmental footprint of industrial storage. This material is more durable and environmentally friendly than polymer composites, which generate more waste at the end of their life cycle. Choosing an aluminum silo means opting for a high-performance solution aligned with today’s sustainability goals.
Let's build together your storage solution
Stéphane B.
Powder processing solution expert
Our achievements for Aluminium silo
Since 2014, we have acquired solid expertise and experience in installing solutions for the storage, transfer and dosing of powdered raw materials for our customers. Discover our achievements.
